Delivering the Ideal Network for the Expanding Use of Cloud Services
Gigabit Access VPN Router Designed for Small-Scale Locations
- Boosted performance：Seamless access to cloud services
- Simple, secure local breakout for major cloud platforms
- JC-STAR Level 1 certified for trusted security compliance
Boosted performmance : Seamless access to cloud services
Despite its compact half-rack form factor, the RTX840 supports up to 150,000 NAT and dynamic filter sessions, delivering significantly enhanced TCP connection processing performance.
This ensures a stable and reliable network environment even when session demand temporarily spikes—such as during heavy access to cloud services in schools, offices, or other high-traffic environments.
- Throughput : Max 2.0Gbps
- IPsec Throughput : Max 1.0Gbps
- NAT Sessions : Up to 150,000
- VPN Concurrent Sessions : Up to 20 sessions

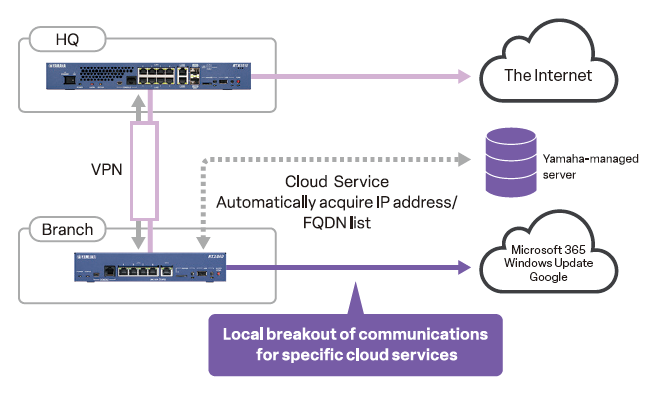

Simple, secure local breakout for major cloud platforms
Avoid Bandwidth Congestion at the Central Router
As the use of cloud services continues to grow, traffic routed from branch offices through the central network is increasing, raising the risk of bandwidth bottlenecks and service disruptions.
To address this, demand is rapidly rising for local breakout—a method that allows branch routers to connect directly to the internet without passing through the central router.
The RTX840 natively supports local breakout through destination lists defined by IP addresses or FQDNs, helping reduce the load on central routers and optimize overall network performance.
Maintenance-Free Operation
The latest destination lists used by major cloud services—such as Microsoft 365, Google services, and Windows Update—are automatically delivered from Yamaha-managed servers at no additional cost.
This enables continuous updates without requiring any changes to the initial configuration, ensuring that your local breakout rules remain accurate and up to date.
Users can also define and automatically manage their own custom service destinations.
This feature significantly reduces operational workload while maintaining a stable and efficient branch network environment.
JC-STAR Level 1 certified for trusted security compliance
The RTX840 complies with Level 1 of the JC-STAR Security Requirements Assessment and Labeling Program, established by Japan’s Information-technology Promotion Agency (IPA).
This certification makes it easier for enterprises and public institutions to select the RTX840 as a product that meets their security requirements, thereby reducing the time needed for evaluation and procurement.
In addition, its highly secure design helps minimize long-term security risks throughout the product lifecycle.
Specification
| Interface | LAN Ports | LAN: 4 ports WAN: 1 port All ports support 10BASE-T / 100BASE-TX / 1000BASE-T and automatically detect straight or crossover cables. LAN ports function as a 4-port Layer 2 switch. |
|---|---|---|
| microSD Slot | 1 slot (SDHC compatible) | |
| USB port | 1 port: USB 2.0 Type-A (Power supply current: up to 500 mA, supports USB memory and USB data communication devices) （※2） | |
| Console port (for configuration) | 2 ports: RJ-45, USB Mini-B (5-pin), 9,600 / 19,200 / 38,400 / 57,600 / 115,200 bit/s （※3） | |
| Memory | Flash ROM | B64MB (Firmware: 1 pairs, Config: 5 pairs / History function) |
| RAM | 1GB | |
| Performance | Built-in L2 switch function | Port isolation, LAN segmentation (port-based VLAN), port mirroring |
| Functions for closed network services | Tags: VLAN, IPv6 Multicast (MLDv1, MLDv2, MLD Proxy) | |
| Tag VLAN（IEEE 802.1Q） | 32ID per LAN | |
| Number of PPPoE sessions | 5 | |
| Supported Lines and Service Networks (*1) | FTTH (OPTICAL FIBER), ADSL, CATV, ATM LINE, IP-VPN NETWORK, WIDE-AREA ETHERNET NETWORK | |
| IPv4 connection format | Native, Tunnel, DHCP, PPPoE | |
| IPv6 connection format | Native, Tunnel, RA Proxy, DHCPv6-PD, PPPoE, IPoE | |
| Routing | Routed Protocols | IPv4, IPv6 |
| IPv4 Routing Protocols | RIP, RIP2, OSPF, BGP4（EBGP, IBGP） | |
| IPv6 Routing Protocols | RIPng, OSPFv3 | |
| Number of route entries | 10,000（※4） | |
| OSPF Neighbor Count | 30（※4） | |
| Number of OSPF routes | Total when connected to 10 neighbors or less: 10,000, Total when connected to 30 neighbors: 8,000 | |
| BGP4 Peer Count | 32 | |
| Number of BGP4 routes | 10,000（※4） | |
| Data Compression | CCP（Stac LZS）, VJC | |
| Throughput | Throughput | Max 2.0 Gbit/s （※5） |
| IPsec Throughput | Max 1.0Gbit/s （※6） | |
| VPN Locations | sum | 20（※7） |
| Ipsec | 20 | |
| L2TP/Ipsec | 20 | |
| L2TPv3 | 1 | |
| PPTP | 4 | |
| Multipoint Tunnel | 20 | |
| VPN function | IPsec (VPN function: NAT traversal, XAUTH) + AES128/256, 3DES, DES (encryption function: hardware processing) + IKEv1 (main mode, aggressive mode) / IKEv2, IKEv2 / IPsec remote access (PSK) (*8), PPTP (VPN function) + RC4 (encryption function) (*9), L2TP/IPsec, L2TPv3, L2TPv3/IPsec, IPIP tunnel, Multipoint tunnel (server/client), IPsec route auto-add function | |
| NAT | Address Translation Function (NAT Descriptor Function) | NAT, IP Masquerading, Static NAT, Static IP Masquerading, DMZ Host Function, PPTP Passthrough (Multiple Sessions(*10)) , IPsec Passthrough (1 Session), FTP Support, Traceroute Support, Ping Support,IP Masquerading Conversion Session Limit, Port Saving IP Masquerading, Hairpin NAT |
| Number of NAT Sessions | 150000 | |
| QoS | QoS function (control method) | Priority control, Bandwidth control(Dynamic Traffic Control）, Dynamic Class Control, Tunnnel QoS, Bandwidth detection, Load notification |
| QoS function (classification method) | IP address, protocol, port number, ToS field | |
| QoS function (linkage with network-side QoS function) | Diffserv, Coloring (ToS), ToS→CoS conversion | |
| Security | Authentication function | RADIUS, PAP/CHAP, MS-CHAP/MS-CHAPv2 |
| Security Features | URL filter (internal database lookup type), DHCP terminal authentication function, Winny filter (Winny Version 2 compatible), Share filter (Share version 1.0 EX2 compatible), MAC address filter | |
| Firewall function (IPv4/IPv6 static filtering) | IP Address, Port, Protocol (Established, with TCP flag), FQDN, Source/Destination, Applies to LAN/WAN side IN/OUT | |
| Firewall function (IPv4/IPv6 dynamic filtering) | BASIC APPLICATION (TCP, UDP), APPLICATION APPLICATION (FTP, TFTP, DNS, WWW, SMTP, POP3, TELNET), FREE DEFINITION, APPLIES TO IN/OUT ON LAN/WAN SIDE | |
| Number of Dynamic Filter Sessions | 150000 | |
| Firewall function (IDS: IPv4 unauthorized access detection) | Applies to IN/OUT on LAN side/WAN side, IP header, IP option header, 41 types of unauthorized access can be detected in categories such as ICMP/UDP/TCP/FTP, unauthorized access detection email notification function | |
| Backup | Backup function | VRRP, Floating Static, Network Path Backup, LAN/PP/Tunnel Interface Backup, Wireless WAN Backup, Backup Email Notification |
| IP keepalive ground count | 100 (*11) | |
| Management/Settings | Statistical management functions | Dashboard functions (system information, resource information, interface information, traffic information, provider connection status, VPN connection status, YNO agent operation status, number of NAT sessions, number of fastpath flows, number of dynamic filter sessions, keyword check statistics of URL, unauthorized access detection history, SYSLOG) |
| THERE | YNO Agent Function, GUI Forwarder, Zero Config, LAS | |
| LAN management | L2MS Manager (*12), VLAN Batch Configuration, Snapshot Function, Redundant LAN Cable, LAN Map, List Map | |
| SNMP | SNMP（v1, v2c, v3） | |
| Logging Capabilities | Storage in memory, Output by SYSLOG, Output to external memory (microSD, USB memory) (with encryption function), Log saving when the power switch is turned off (power-off log saving function), Reboot log saving function | |
| Log Storage Capacity | Up to 10,000 rows | |
| Means of setting | Console, TELNET server (multiplexed), TELNET client, SSH server (multiplexed), SSH client, Web GUI (custom GUI compatible), Configuration via external memory (microSD, USB memory), Download/upload via TFTP/SFTP/SCP, Remote setup via Data Connect | |
| Recommended browsers for GUIs(*13) | Windows: Microsoft Edge, Google Chrome, Mozilla FireFox macOS: Safari iPadOS: Safari | |
| Other features | DHCP SERVER, DHCP CLIENT, DHCP RELAY AGENT, DNS RECURSIVE SERVER, DNS SERVER SELECTION FUNCTION, CIDR, PROXY ARP, SNTP SERVER, NTP CLIENT, LAN SECONDARY ADDRESS SETTING, FILTERED ROUTING, LOOPBACK/NULL INTERFACE, PACKET FORWARDING FILTER, MULTIHOMING, Scheduling function, Survival notification function, Netvoluntary DNS service support (*14), UPnP support, Wake on LAN support, NAT46/DNS46 function | |
| Extensions | Lua Scripts | |
| SIP connection function | Number of data connects:6 | |
| Hardware | Status indicator | Front：14（POWER, ALARM, STATUS, LAN［LINK / SPEED×4］, WAN [LINK/ DATA SPEED] , microSD, USB, Back：0 |
| Operating environment conditions | Ambient temperature 0 to 50°C, ambient humidity 15 to 80% (non-condensing) | |
| Power | AC100~240V(50/60Hz), Built-in power supply, Power inlet (2-pole connector, C8 type), Power switch | |
| Maximum consumption power (picophase power), maximum consumption current, heat consumption | 12W（24VA）, 0.24A, 43.2kJ/h | |
| Energy-saving features | Energy Efficient Ethernet (EEE), shutting down unused LAN ports and SFP+ slots, shutting down microSD slots/USB ports | |
| case | Metal housing, Cooling fans: 2 | |
| Radio wave barrier specifications, environmental load substance management | VCCI Class A, RoHS supported | |
| External dimensions | 220（W）×43.5（H）×160（D）mm （Protrusions not included） | |
| Weight (not including accessories) | 1.1kg | |
| accessory | Power cord, Power cord relief bracket, Read before you begin (including warranty card), Rubber feet, Dust cover (factory installed, installed in SFP+ slot) | |
| Default IP address | 192.168.100.1 | |
(*1)To connect to lines such as ADSL, CATV, or FTTH (fiber optic), a separate ADSL modem, cable modem, or media converter may be required. In addition, some internet service providers may not allow simultaneous use by multiple computers,so please check with your service provider. (*2)Operation of all USB memory devices is not guaranteed. USB hubs cannot be used. The list of USB data communication devices confirmed to work is available on the technical information website. (*3)Please use a commercially available USB Mini-B cable. (*4)The values indicated are the maximum values confirmed by Yamaha through testing. (*5)Throughput values are measured based on RFC2544 (without NAT, without filters,with multiple bidirectional flows processed by multi-core).(*6)The values when using AES+SHA1 are measured with multiple bidirectional flows processed by multi-core. (*7)The total upper limit applies when multiple types of VPNs are used simultaneously.(*8)Only remote access connections from Android, iOS, and iPadOS are supported.
(*9)This product uses “RC4.” RC4 is a registered trademark of RSA Security LLC in the United States and other countries.(*10)For PPTP clients, multiple sessions are supported. The PPTP server supports only one session.(*11)Applicable number of destinations when using the IP keepalive function for monitoring only, without combining VPN or network backup functions.(*12)L2MS (Layer 2 Management Service) is a function that manages Yamaha network devices at Layer 2 level. Compatible L2MS agent models are listed on the Technical Information (RTpro) website.(*13) It is recommended to use the latest version of your browser. The latest information about supported web browsers is available on the Technical Information (RTpro) website.(*14) In Internet environments using private IP addresses such as “10.x.x.x,” “172.16.x.x–172.31.x.x,” or “192.168.x.x” (e.g., CATV), the NetVolante DNS service cannot be used.
